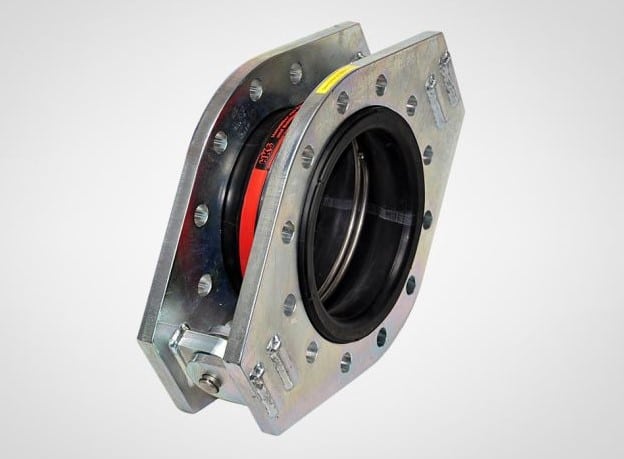

Expansion Joint – HKS

    ERV-Rubber and PTFE expansion joints are available in a variety of rubber qualities with and without certification. They are often used in diesel or gas engines, chemical plant, the food industry or in heating and sanitary areas as well as waste water treatment plant.

    So sánh sản phẩm
      Rubber expansion joint parameters
      Bellows materials/rubber qualities
      • BR
      • Butyl II-R / EPDM Compound
      • CR (Chloropren)
      • CSM (Hypalon®, Chlor-Sulfat-Polyethylen)
      • EPDM
      • FPM (Viton®)
      • NBR (Nitril, Nitrile Butadiene Rubber)
      • PTFE
      Connection parts
      • Flanges of C steel (S235JR)
      • high-alloyed steel (1.4541, 1.4571, 1.4571, 1.4828, etc.) or special steels
      • Screw fittings of malleable iron or high-alloyed steel
      Nominal widths
      • DN20 to DN3200
      Operating temperature
      • up to 130 °C
      Pressure levels
      • PN1 to PN25
      Movement absorption
      • axial
      • lateral
      • angular
      • Combinations thereof
      Available accessories
      • Vacuum support rings (VSD)
      • Tensions like tie rod – length limiter
      • Joints (simple or universal joint)
      • Flame-resistant covers
      • Protective covers (Ground protection covers)
      • Guide tubes
      ERV-Expansion joint types
      • Type 1: BR, CR, G, G LT, GR, GS, GS HNBR, OR, R, RS, V, W
      • Type 2: CR, G, GR, R, RS
      • Type 3: HZB, HZG, HZR

      Catalog
