Pressurisation – IMI TA

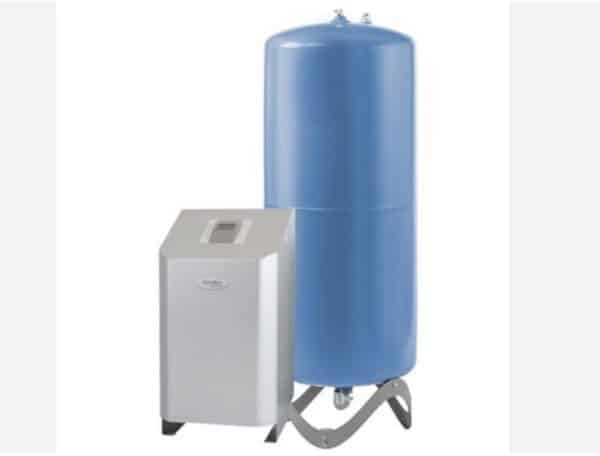

    The Transfero TVI Connect is a precision pressure maintenance device for heating and solar systems up to 8 MW, and chilled water systems up to 13 MW. Its use is particularly recommended where high performance, compact design and precision are required. The new BrainCube Connect control panel allows a new level of connectivity, enabling communication with the BMS system and other BrainCubes, as well as remote operation of the pressurisation system through live viewing.

    So sánh sản phẩm
      Function, Equipment, Features
      Control unit BrainCube Connect
      – BrainCube Connect control for an intelligent, fully automatic, safe system operation. Self-optimising with memory function.
      – Resistive 3.5” TFT illuminated colour touch display. Web-based interface with remote control and live view. User-friendly, operation-orientated menu layout with slide and tap operation, step-by-step start up procedure guide and direct help in popup windows. Representation of all relevant parameters and operation status in plain text and/or graphical, multilingual.
      – Standardised integrated connections (Ethernet, RS 485) to the IMI webserver and BMS (Modbus and IMI Pneumatex protocol).
      – Software updates and data logging possible via USB connection
      – Data logging and system analysis, chronological message memory with prioritisation, remotely controllable with live view, periodical automatic self-test.
      – High quality metal cover.
      – Variable installation next to the primary vessel.
      Pressure maintenance
      – Dynaflex operation.
      – Protected isolating valves to the system. 2 bar safety valve and ball valve for fast draining of primary vessel
      – Precision pressure maintenance ±0.2bar
      Vacuum Degassing
      – About 1000 l/h flow capacity for system degassing.
      – Vacusplit: Degassing programs for permanent operation with cyclonic technology. Gas under saturation of system water of nearly 100%. Eco automatic operation when no air is detected, savings on electricity consumption of the pump.
      – Oxystop degassing: Direct degassing of make-up water. Significant oxygen reduction in the make-up water. Safely degasses both system and make-up water in a specially designed cyclone vessel (inside the Tecbox), with the advantage of low keeping temperature of the expansion vessel, without the need to insulate the vessel. Protects the system against corrosion.
      Water make-up
      – Fillsafe: water-make up monitoring and control with integrated contact water flow meter and solenoid valve.
      – Connection for optional Pleno p BA4R/AB5(R) water make-up devices for tap water protection following EN 1717.
      – Softsafe monitoring and control for an optional refill water treatment device.
      Expansion vessels
      – Bag can be vented at the top, condensate drain at the bottom.
      – Feet for upright assembly.
      – Airproof butyl bag (TU, TU…E, TG, TG…E), exchangeable (TG, TG…E).
      – Endoscopic inspection opening for internal inspections (TU, TU…E). Two flange openings for internal inspections (TG, TG…E).
